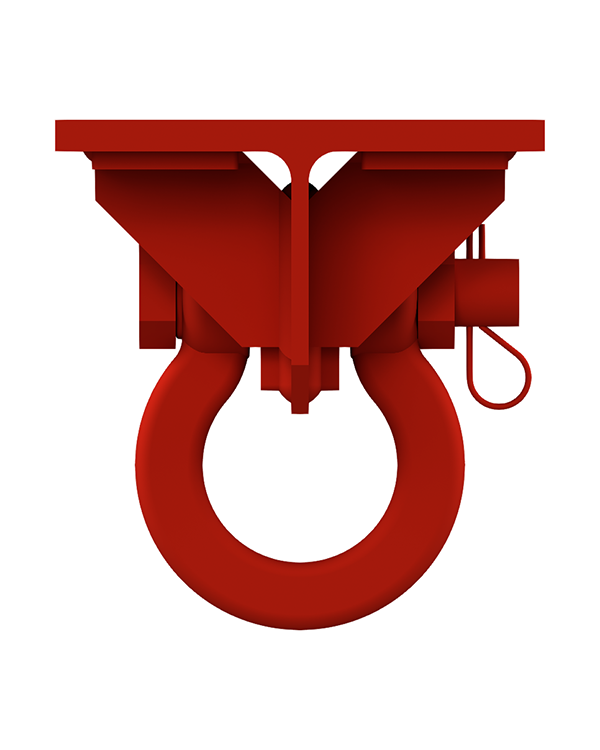

Our 12-ton lifting lug is designed for heavy lifting and transportation tasks in mining, industrial and construction settings. It is made of high-quality, durable material to ensure it can handle the weight and stress of your load. The lug is easy to attach and secure to your load using the supplied shackle. It is also easy to use, with a clear and intuitive design that makes it easy to hook and lift using standard lifting equipment. Whether you are moving large equipment, moving heavy materials, or simply need a reliable way to lift and move heavy items, this lifting lug is an excellent choice. It is built to last, with a sturdy and reliable construction that will stand up to the environment and demands of your job. So why wait? Invest in this 12-ton lifting lug today and take control of your heavy lifting tasks!
Installation & Inspection
- This lifting bracket is to be fastened directly to the back or wall by means of 4 – #7 DYWIDAG thread bars or #6 Williams all thread rebar installed in four Ø1 7/16″ holes.
- Mines technical service or mine engineering to certain ground control conditions and determine bolt length, resin cartridge type, and length.
- Refer to mine’s standard procedure for installation.
- The completed installation shall be inspected and certified by the mine’s engineering.
- Re-examine installation before each use.
Rating by load
- Straight lift – chain block or come-along 12-ton max.
- Lift by cable – single block on bracket 6-ton max.
- Load restrictions as per mine’s technical services guidelines.
