A Measured 3D Record of Your Existing Facility
We come to your plant, factory, refinery, or warehouse and capture the conditions as they are on the day we scan. The result is a measured existing-condition model your team can plan, build, and repair from — without guesswork or outdated drawings.
When brownfield scanning pays off
Upgrades & expansions
Planning new equipment or a line expansion? Start from a measured model of the space you’re working in, so fit-up problems on the interfaces in scope show up on screen before they show up on site.
Retrofits
Replacing aging equipment or piping? Capture the surrounding structure so clearances and tie-in points are checked before the new part is made.
Shutdown planning
Make the most of limited downtime. Scan ahead so crews arrive with measured conditions for the areas in scope, not assumptions.
Existing-condition documentation
Dated drawings or models of the visible conditions included in the agreed scope, developed for the identified project use.
What you walk away with
Registered point cloud
A measurable 3D record of the scanned area that you can revisit at any time.
Existing-condition CAD models
CAD models developed from selected captured information to the detail, format and purpose defined in the project scope.
3D building models
For larger facilities, a full model that architects, electricians, and pipefitters can coordinate around.
Clash detection
Catch conflicts on screen — before they cost you on the floor.
How a brownfield scan works
On-site scan

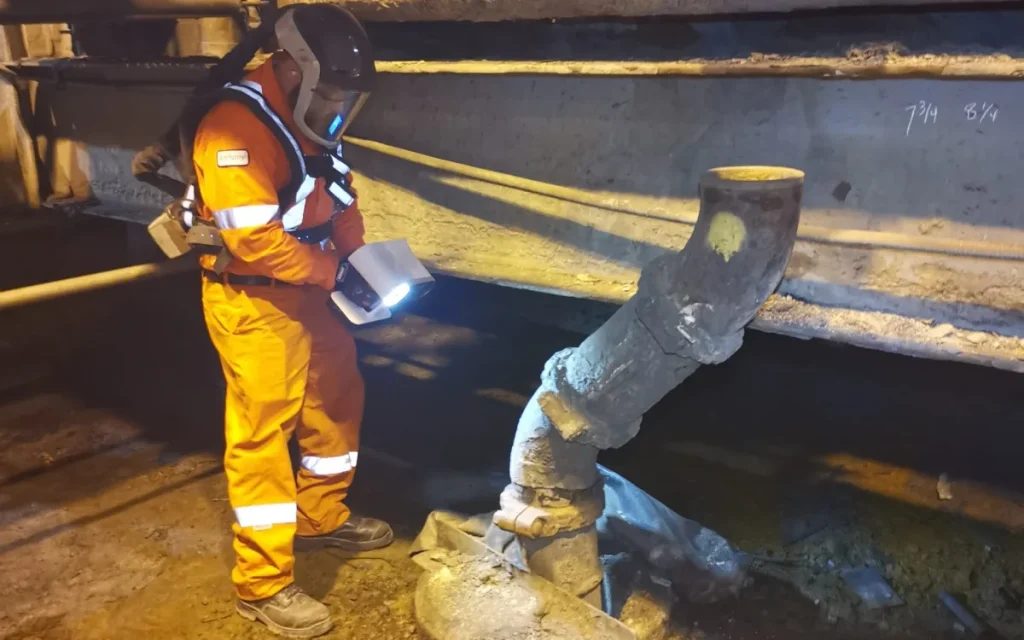

We bring professional laser scanners to your facility and capture the piping, steel and equipment inside the agreed scan area.
Register & process
We stitch the scans into one accurate, measurable point cloud.
Model & deliver
We turn the data into the CAD or building model defined in your project scope.
Not sure if brownfield scanning fits your project?
Need reliable site data for an existing facility? Share your project details with us, and we’ll guide you toward the most effective scanning solution for accurate measurements, better planning, and smoother project execution.
