From Accurate Drawings to Finished, Fabricated Parts
Need the work built, not just drawn? We handle basic fabrication — cutting, welding, and assembly — working straight from our own accurate models and shop-ready drawings.
Where we come in
Cutting & forming
Parts cut and formed to size, straight from dimensioned drawings — no guesswork on the shop floor.

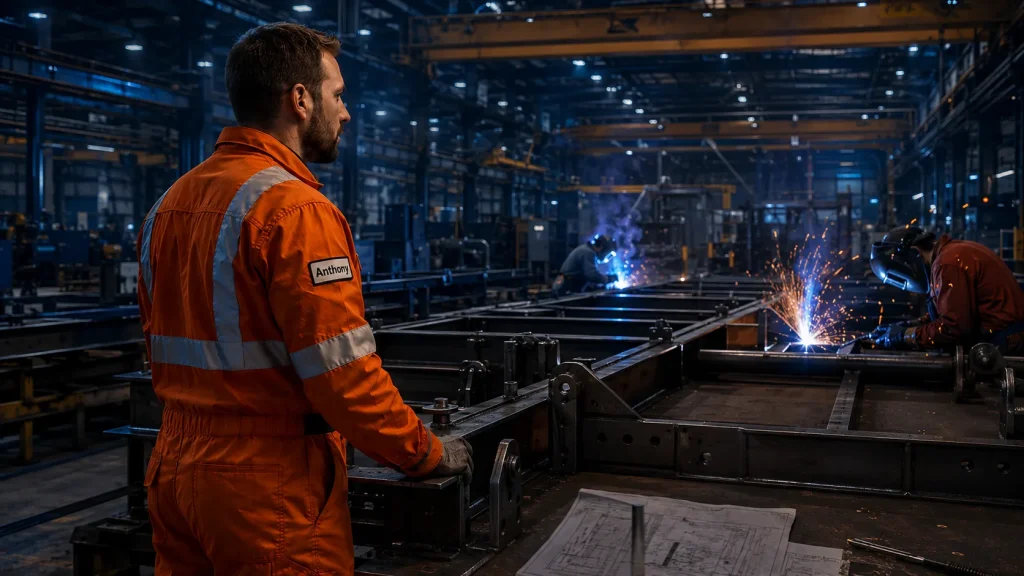

Welding & assembly
Welded parts and assemblies built to the fabrication drawings, with fit checks against the model where the scope includes them.
Repairs & modifications
We capture existing parts or equipment and develop the drawings and model information required for a defined repair or modification
Fabricated parts & assemblies
Finished components supplied to the issued drawings and agreed material, finish and delivery requirements.
What you walk away with
Finished parts
Fabricated components built directly to drawing — ready to install, not just ready to fabricate.
Controlled fabrication package
The drawings, models, part files and revision information used to support the build.
One contract, one schedule
Creative GOAT can coordinate the design documentation and partner-shop fabrication within one agreed scope and schedule.
Issued fabrication documentation
Applicable drawings, models and revision records supplied or retained for the project handoff.
How our fabrication services work
Scope and drawings
We confirm your design — or create the shop drawings and 3D model ourselves.
Fabricate
Partner shops cut, weld and assemble to the issued drawings. Creative GOAT coordinates the drawing and model questions included in its scope.
Deliver
You receive the finished parts and documentation identified in the agreed project scope.
Have something that needs to be built?
Tell us what you need fabricated, and we’ll quote the drawings, the build, or both.
